The Theory Behind Resistivity Logging

Resistivity logging measures the electrical resistance of rock formations to infer their properties. By introducing electrical currents into the subsurface and measuring the response, we can determine:

• Porosity and Permeability: How porous a rock is and how easily fluids can flow through it.
• Fluid Content: Differentiating between oil, gas, and water-bearing formations.
• Lithology: Identifying rock types based on their resistivity signatures.

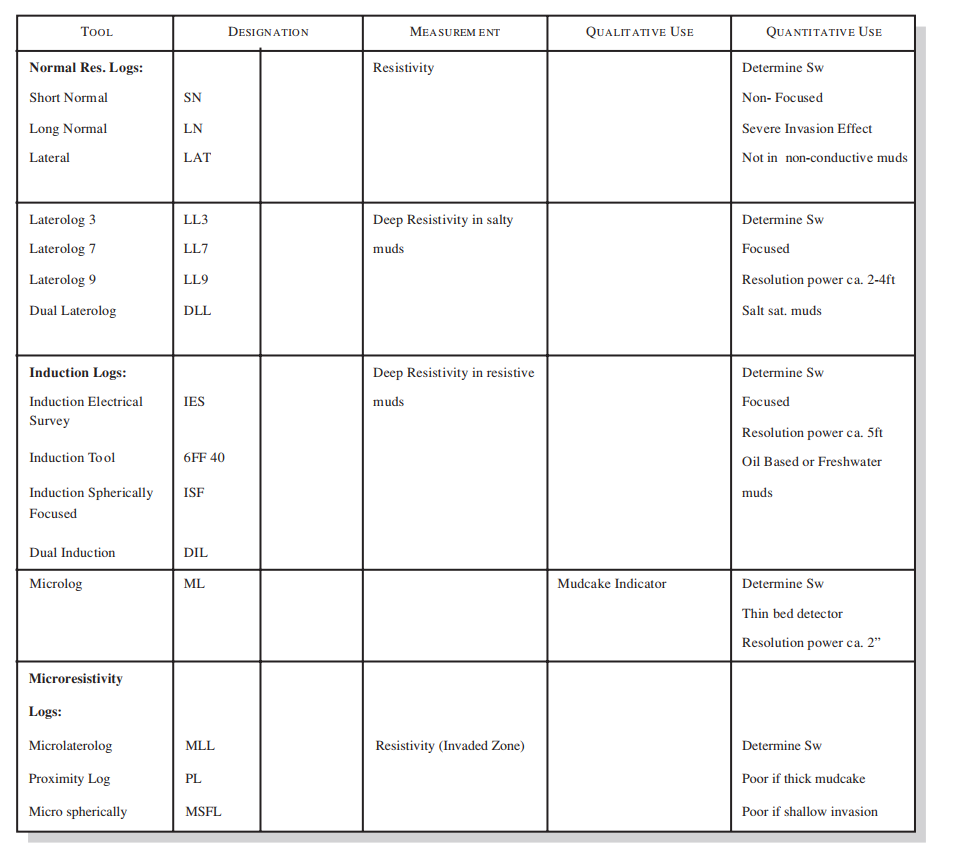

Types of Resistivity Logging

1. Normal Resistivity Log
   • Description: Also known as the shallow resistivity log, it uses two electrodes to send and receive electrical currents at varying spacings.
   • Application: Measures the resistivity of the formation near the borehole wall, providing valuable information about the near-wellbore region.
   • Benefit: Simple yet effective for basic formation evaluation.
2. Laterolog Tools
   • Description: Designed for conductive drilling mud environments.
   • Application: Focuses electrical currents deeper into the formation to measure resistivity away from the borehole wall.
   • Benefit: Provides accurate readings in salty (conductive) muds, ideal for deeper formation analysis.
3. Induction Logging
   • Description: Utilizes electromagnetic induction principles.
   • Application: Measures formation conductivity, best suited for non-conductive (freshwater) muds and formations with high invasion characteristics or complex mineralogy.
   • Benefit: Effective in diverse geological settings with minimal interference from drilling fluids.
4. Microresistivity Logs
   • Description: Offers high-resolution measurements close to the borehole wall.
   • Application: Essential for detecting thin beds and conducting detailed stratigraphic analysis.
   • Benefit: Provides granular insights into formation layering and composition.
5. Array Resistivity Tools
   • Description: Utilizes multiple electrodes to capture a comprehensive resistivity profile.
   • Application: Enhances vertical resolution and overall formation evaluation.
   • Benefit: Delivers a detailed and nuanced understanding of subsurface resistivity variations.

Applications in the Industry

• Identifying and Characterizing Reservoirs: Detecting potential oil and gas zones through high-resistivity signatures.
• Lithology Recognition: Differentiating rock types to accurately map reservoir boundaries.
• Textures and Facies Recognition: Analyzing sedimentary environments for better reservoir prediction.
• Calculation of Water Saturation: Estimating water content to optimize hydrocarbon recovery.

Advanced Tools and Innovations

• Logging While Drilling (LWD): Real-time resistivity measurements while drilling, reducing operational time and costs.
• 3D Resistivity Imaging: Enhanced visualization of complex geological structures.
• Deep Azimuthal Resistivity Tools: Providing directional resistivity measurements for better geosteering in horizontal wells.
• Machine Learning and AI: Advanced data processing and interpretation, leading to more accurate subsurface models.

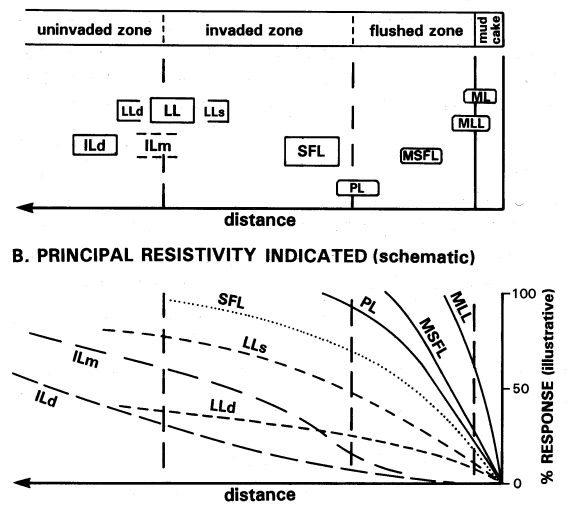

Depth of Investigation of Each tool
