An innovative permeability derivation method and workflow has been developed using the Stoneley wave attenuation mechanism. This method offers a more accurate and sensitive approach to estimating formation permeability. Here are the key aspects and details of the methodology and findings:

Basis of the Method:
- Stoneley-Wave Characteristics:
- The method is based on the relationship between Stoneley-wave propagation characteristics and formation permeability. Specifically, as formation permeability increases, Stoneley-wave velocity decreases while its attenuation increases.

Workflow Components:
1. Extraction of Stoneley-Wave Attenuation:
- Stoneley-wave attenuation is rigorously extracted from the waveform data obtained through monopole sonic measurements.
2. Inversion to Permeability:
- The extracted Stoneley-wave attenuation is then quickly inverted to determine the permeability of the formation.

Sensitivity Analysis:
- Sensitivity Comparison:

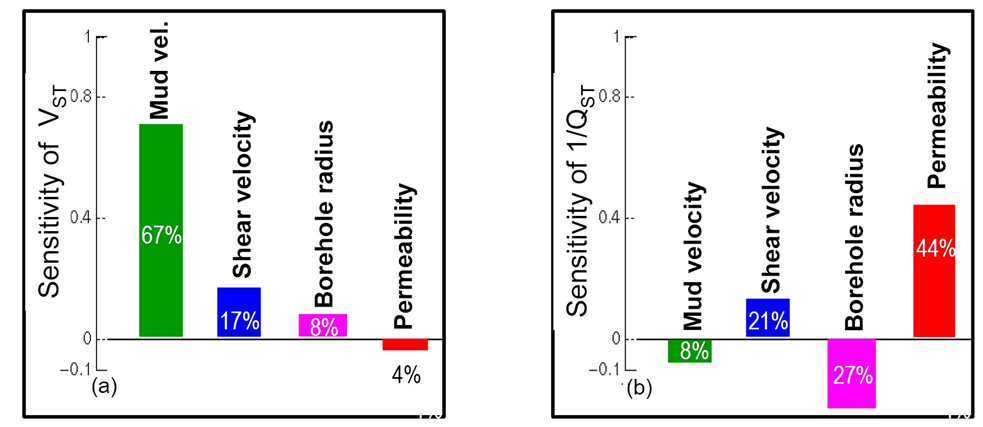

- The sensitivity of Stoneley-wave velocity and attenuation to different model parameters was analyzed. The findings showed that Stoneley-wave attenuation is significantly more sensitive to permeability changes than Stoneley-wave velocity.
- Borehole mud velocity has a strong influence on Stoneley-wave velocity but weakly affects Stoneley-wave attenuation. Therefore, Stoneley-wave attenuation is a more effective parameter for permeability inversion.
- The sensitivity analysis highlighted the advantages of using Stoneley-wave attenuation over velocity for permeability inversion due to its higher sensitivity to permeability changes.

Inversion Methodology:
The current inversion method consists of three major steps:
1. Estimate Stoneley-Wave Attenuation:
- Frequency-dependent Stoneley-wave attenuation is estimated from monopole sonic measurements.
2. Build a Forward Simulation Model:
- A forward simulation model is constructed using standard logs (gamma ray, caliper, resistivity, density, neutron, and sonic data). The theoretical Stoneley-wave attenuation is calculated under an initial permeability value using full Biot theory.
3. Iterative Comparison and Optimization:
- The measured Stoneley-wave attenuation is compared with the theoretical values, and the optimal permeability is determined through iterative processes.

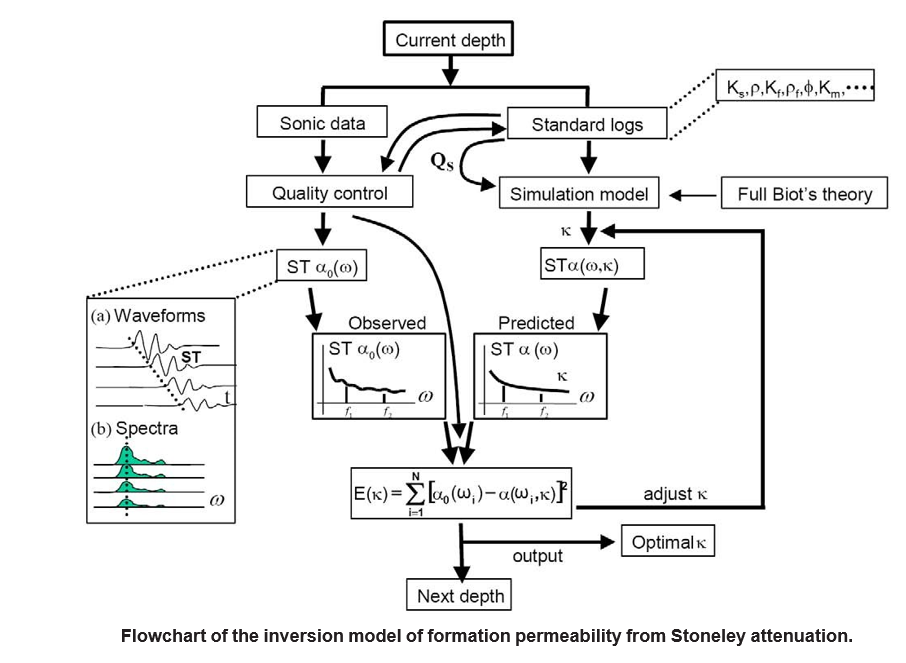

Workflow Diagram:

Conclusion:

This innovative method utilizing Stoneley-wave attenuation for permeability derivation provides a reliable and sensitive tool for reservoir characterization. The method enhances the ability to estimate permeability in the absence of core data, making it a valuable asset for reservoir simulation and management.
